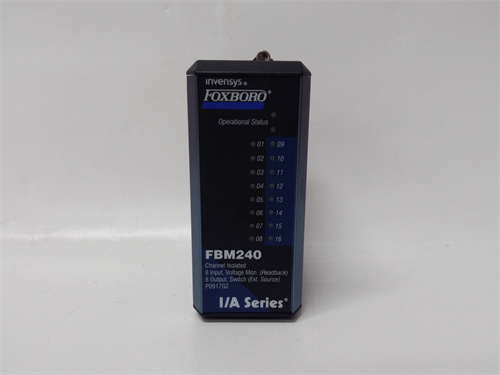

FOXBORO FBM240 | FBM200 Series Discrete Output Module

Description Key Technical Specifications Parameter Specification Part Number FBM240 Product Type Discrete Output Module Series FBM200 / I/A Series Channels 16 discrete outputs Output Type 24V DC sourcing (PNP) Output Current 0.5A per channel maximum Total Current 8A per module maximum Load Type Resistive, inductive (with suppression) On-State Voltage 24V DC nominal (20-30V DC range) Protection Short circuit, overcurrent, thermal shutdown Isolation 1500V optical (channel-to-backplane) Field Power External 24V DC required (fused) Indicators Per-channel status LEDs Response Time 1 ms typical Mounting DIN rail (with mounting base) Operating Temp 0°C to 60°C Condition New Surplus (Original Packaging) Product Introduction The FOXBORO FBM240 is a 16-channel discrete output module for the FBM200 series, part of the Foxboro I/A Series distributed control system. It provides 24V DC on/off control signals for field devices such as solenoid valves, relay coils, indicator lights, and motor starters in process control applications. The FBM240 features per-channel short circuit and overcurrent protection, with status LEDs for immediate visual feedback. It requires external 24V DC field power and mounts on a DIN rail base that provides field wiring connections. This unit is new surplus, factory-sealed in original Foxboro packaging. I/A Series components remain widely deployed in process industries; contact us for current stock and firm pricing. Frequently Asked Questions (FAQ) Q: What systems use the FBM240 module? A: The FOXBORO FBM240 is used in: Foxboro I/A Series DCS (all generations) FBM200 series I/O subsystems Process industries: chemical, refining, power, pharmaceutical Applications requiring discrete output control If you have an I/A Series system with FBM200 I/O, you likely have FBM240 modules for digital outputs. Q: Is the FBM240 sourcing or sinking? A: The FBM240 is sourcing (PNP)—it provides 24V DC to the load when the output is ON. The load connects between the output terminal and common (0V). This is standard for Foxboro discrete outputs. If your field devices expect sinking inputs, you’ll need interposing relays. Always verify your field device wiring before connecting. Q: Does the FBM240 require external 24V power? A: Yes. The FOXBORO FBM240 requires external 24V DC field power for the outputs. The module’s logic power comes from the FBM200 bus, but the output circuits need separate field power. This is typically provided by a fused 24V DC supply in the cabinet. Without field power, outputs will not energize even if commanded. Q: What do the front panel LEDs indicate on the? A: The has per-channel LEDs (typically yellow) that illuminate when the output is ON (commanded by the controller). If the LED is ON but the field device doesn’t operate: Check field wiring (loose connection, open circuit) Verify 24V field power is present at module terminals Check load (shorted, open, or exceeding 0.5A) If the LED is OFF but the controller shows output ON, the output transistor may be failed. In my experience, 90% of “output not working” issues trace to field wiring or power, not the module. Q: What’s the typical failure mode for modules? A: In my experience with I/A Series systems: Output transistor failure from surges or shorted field wiring (most common) Field power fuse issues (external fuses blow, module reports fault) Power supply section aging—after 10 years in warm cabinets Channel-specific failure (one output dies, others work) The FOXBORO FBM240 is robust, but process plants are brutal. If you lose one channel while others work, the module is damaged—replace it. For critical plant systems, keep spares. Q: Can the be hot-swapped? A: The mounts on a DIN rail base. The base contains the field wiring; the electronics module plugs into the base. You can remove/replace the electronics module without disturbing field wiring, but: The module must be removed/replaced with power off (check I/A Series specifications) Foxboro FBM200 series may not support live hot-swap—consult your system manual In practice, we power down the I/O segment before swapping modules to avoid damage or spurious outputs. Hot-swap capability varies by system generation. Q: What external fusing is required for the? A: The does not have onboard fuses. You must externally fuse: The 24V DC field power input to the module (typically 8-10A fast-blow) Individual output circuits as needed (per-channel fusing optional but recommended for critical loads) Standard practice: fuse the field power supply feeding the . If a field wire shorts, the fuse blows instead of damaging the module. In critical applications, we also fuse individual outputs. Q: What mounting base is required for the? A: The FOXBORO FBM240 requires a compatible DIN rail mounting base, typically: FBM240B (base for ) Other FBM200 series bases The base contains the field wiring terminals and provides the connection to the I/O bus. The electronics module plugs into the base. If you’re replacing an existing , the base stays in place—just swap the electronics. Verify base compatibility with your system. Q: What’s the maximum cable length from to field device? A: The drives 24V DC signals, so cable length is limited by voltage drop and noise. With 0.5A load and 18 AWG wire, voltage drop is about 0.02V per foot round trip. For 500 feet, that’s 10V drop—leaving only 14V at the load, which may not operate the device. Practical limit: 300-500 feet depending on load current and wire gauge. For longer runs, use larger wire or install remote I/O closer to field devices. Q: Does the require configuration in the I/A Series software? A: Yes. The must be configured in the I/A Series engineering tool: Assign module to I/O position Configure output fail-safe states (on controller fault) Map points to control database If you’re replacing a failed module with an identical , the configuration is already in the controller—just plug it in and verify. For new installations, expect engineering time to configure. Q: Can the drive inductive loads like solenoids? A: Yes, within limits, but with external suppression. Each output on the handles 0.5A maximum. Small solenoids (under 12W) are fine. For inductive loads, you MUST install a flyback diode across the coil. Without suppression, the back-EMF when the output turns off can damage the output transistor. The module has some protection, but external diodes are cheap insurance. Q: What’s the difference between and FBM241? A: The is typically 24V DC sourcing output. FBM241 may be: Relay output version Different voltage rating Higher current capacity Special function variant Always match the exact part number from your existing system. The is the standard 24V DC digital output. If you have FBM241 in your cabinet, use FBM241. Check your system documentation. Q: Can the be used with 48V DC field devices? A: No. The FOXBORO FBM240 is rated for 24V DC nominal (20-30V range). Applying 48V will exceed the output transistor ratings and likely damage the module. If you have 48V field devices, use interposing relays (24V coil, 48V contacts) or a different output module rated for 48V. SPFEC12 PLC SGDM-30DN PLC 3AUA0000040000 PLC saia-pcd2m110 PLC Email: [email protected] Phone: 86 15340683922 Sales:Wu Jiedong Our products are guaranteed for 1 year, with new and original production stopped and imported spare parts. All prices listed on the official website are subject to confirmation by contact: Wu Jiedong (manager). Our product: brand new original packaging Our warranty: All new or repaired parts have a 12 month warranty period beginning Our payment: 100% telegraphic transfer of inventory items before shipment, conditions can be proposed! If you have any downtime spare parts that you cannot find, please feel free to call or use email to contact me. If there are issues that the product cannot solve, please contact me. Product prices can be negotiated. Please do not consider contacting me!
