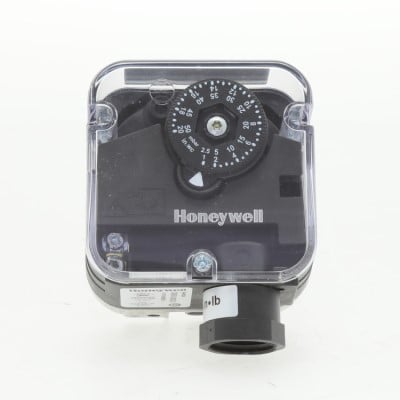

C6097A3053 Honeywell Pressure Switch

Overview Pressure Switches are safety devices used in positive-pressure, negative pressure (Air, Flue gas) or differential-pressure systems to sense gas or air pressure systems. Features Pressure switch for general gas- and air application Diaphragm-actuated safety-limit switch. Switch can be wired to turn on alarm. C6097A3 models break control circuit at set point on pressure fall. C6097B3 models break control circuit at set point on pressure rise. Lockout with manual reset options. Lockout models have external manual reset button. Addtional filter pad for gas/air inlet section Addtional cover over screw terminal for safety Removable transparent cover protects scaleplate and adjusting knob. Optional switch position indicator lamp available. Protection class IP65 Ranges: 0.4 to 4 in. wc, 3 to 20 in. wc, 12 to 60 in. wc or 40 to 200 in. wc. Integral 0.2mm vent limiter on all models. FM and UL certified Product Specifications Application Safety devices used in positive-pressure, negative (Air & Flue Gas Only) or differential pressure systems to sense gas or air pressure changes Dimensions (in.) 76 (high) x 3(wide) x 3.7 (deep) Dimensions (mm) 70 (high) x 76 (wide) x 94 (deep) Item Type Product Mounting 1/4 in. Rp internal thread Electrical Ratings U = 24 – 250 V AC (Gold contact options for lower voltages available) I = 0.05 – 5 A at cos ϕ = 1, I = 0.05 – 1 A at cos ϕ = 0.6. Approvals, Underwriters Laboratories Inc. Component listed,  MH 16048 Electrical Connections Screw terminals; Line entrance: M16 x 1.5 cable gland Operating Temperature Range (F) -4 to 176°F Operating Temperature Range (C) -20 to 80°C Approvals, Factory Mutual I. 1X5A5.AF ; FM Class 3510 Operating Range (psi) 1 – 20 in. wc Differential Pressure Range (psi) 3 – 0.6 in. wc Differential Type Additive Switch Operation Auto Recycle Switching Action Breaks NO to COM on pressure fall. Pipe Connection Vent or Low pressure–1/8 in. Rp internal thread Additional Information
