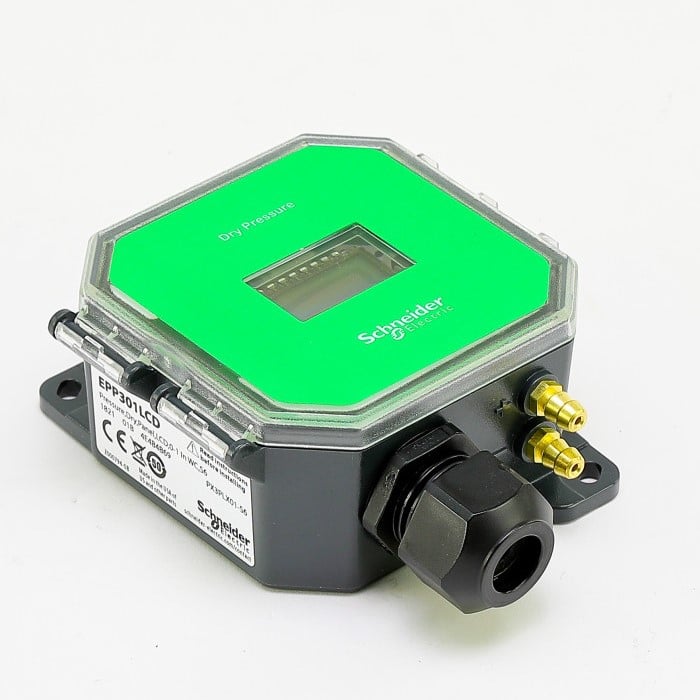

EPP301LCD Schneider Electric Pressure Sensor

PRESSURE-VEL DRY PANEL LCD 1IN Product Specifications [Us] rated supply voltage 12…30 V DC 24 V AC Accuracy /- 1 % FS Application Air Velocity Monitoring Duct Pressure Monitoring Fan Monitoring Filter Monitoring VAV Control Brand Schneider Electric Burst Pressure 5 psid (34.5 kPa) By Schneider Yes Controlled Fluid Air Gas Depth 1.65 in (42 mm) Display Size 17 mm x 28 mm (0.7 ” x 1.1 “) Display Type LCD Electrical Connection – AWG 22 Final Result for Connectable Connectable ready Final Result for Flywheel performance tracking Connectable ready Fitting Size 6 mm (0.24″) Fitting Type Male Height 4.41 in (112 mm) Humidity Calibration Certificate None IP Degree of Protection IP65 Local Signalling Red/green/blue LED Location Plant Room Manufacturer Veris Industries Material Brass Fitting Mounting Mode Panel Mounting Support Panel Net Weight 0.28 lb(US) (0.125 kg) Output Type Analog 3 wires 0…10 V DC Analog 3-wire 0…5 V DC Analog 4…20 mA Pressure Measurement Drift Less than 2.0% Pressure Measurement Range 0…0.1″ W.C. (0…25 Pa) 0…0.25″ W.C. (0…50 Pa) 0…0.5″ W.C. (0…100 Pa) 0…1″ W.C. (0…250 Pa) Probe Diameter 0.28 in (7 mm) Probe Length 7.40 in (188 mm) Product Certifications CE Product Or Component Type Pressure transmitter sensor Sensor Model EPP301LCD Standards EN 61000-6-1 EN 61000-6-3 EN 61326-1 EN 61326-2-3 Temperature Ambient Operating Range -4…140 °F (-20…60 °C) Type Of Measurement Differential Pressure Width 3.46 in (88 mm) Documents Installation instructions   SpaceLogic Sensors, EP Series Installation Instructions Specification sheet   SpaceLogic Sensors, EP Series Specification Sheet
