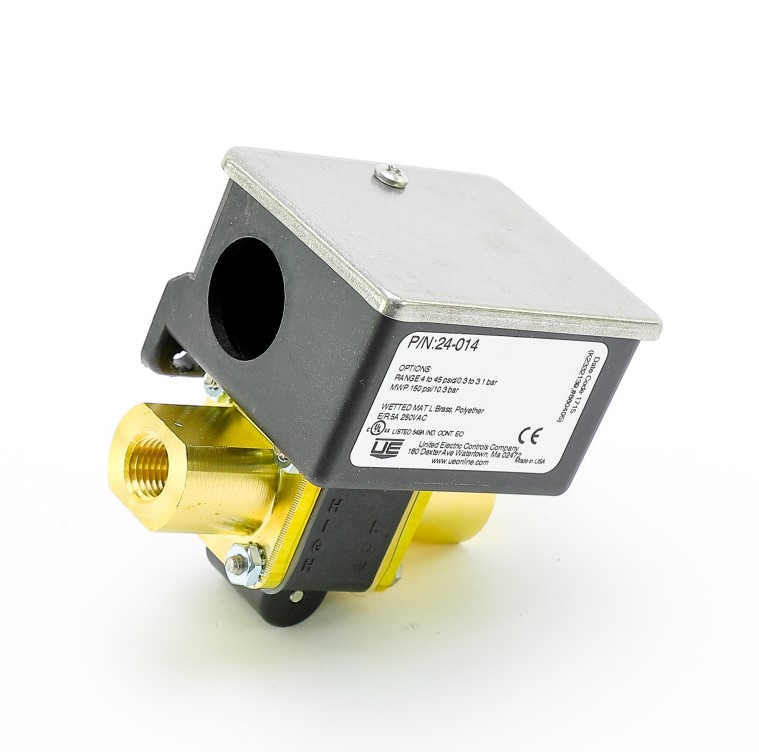

24-014 United Electric Pressure Switch

Datasheet Installation Guide The Johnson Controls 24-014 diff. pressure switch 4-43.5 Lbs., SPDT, Adjustable The cost-effective 24 Series Delta-Pro™ pressure, vacuum, and differential pressure switches offer a unique blend of compact size, excellent performance, and environmental protection. Available with brass, polysulfone®, or PFA Teflon® pressure connections the DeltaPro will stand up in the most corrosive applications. The precision snap-acting switch and sensitive diaphragms combine to provide a narrow deadband and repeatability of approximately ±1% of range span. A convenient, externally accessible adjustment screw is multi-turn to provide easy set point adjustability. The force-balanced design gives the Delta-Pro excellent vibration resistance
